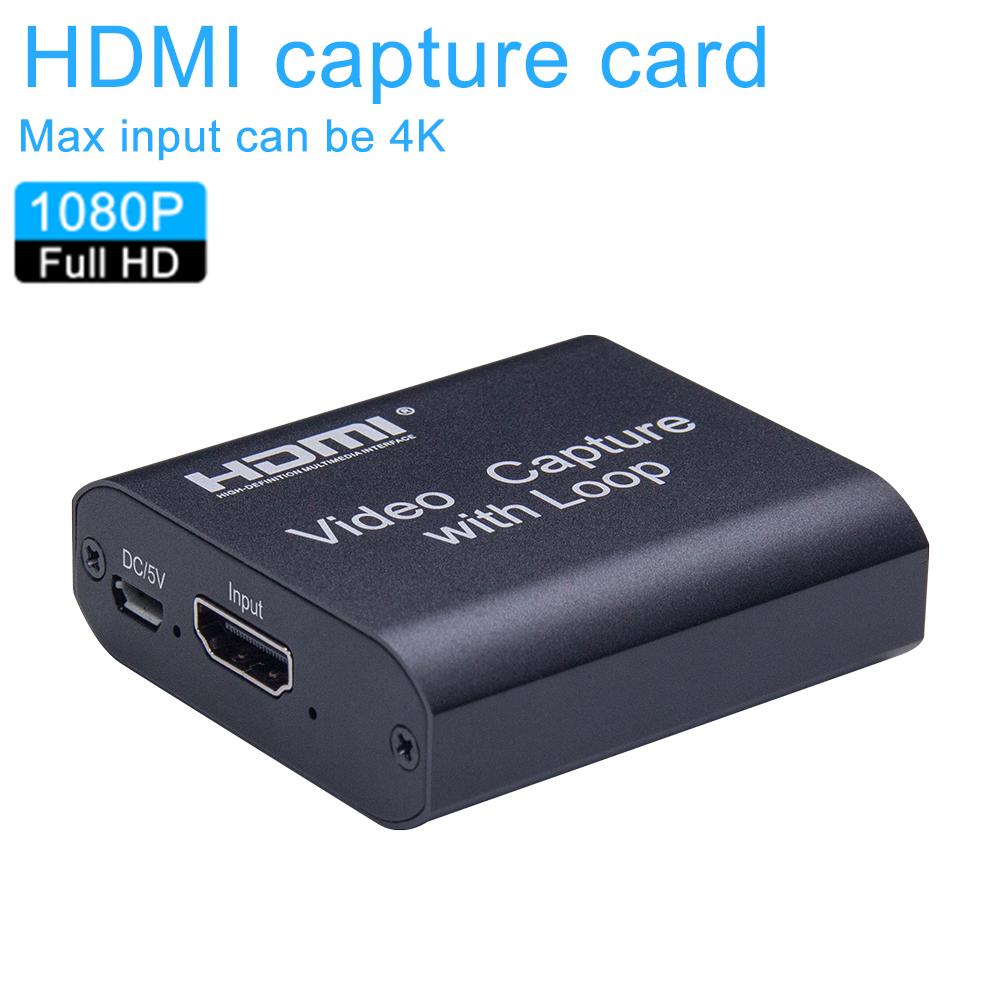

External Graphics Capture Card HDMI to USB 2.0 4K input FHD output (1080p/30fps) / Video Recorder Box For Live Streaming / HDMI Digital Converter / video capture with loop out

External Graphics Capture Card HDMI to USB 2.0 4K input FHD output (1080p/30fps) / Video Recorder Box For Live Streaming / HDMI Digital Converter / video capture with loop out

Characteristics:

* Supports HDMI Loop Out;
* Supports 4K maximum resolution input;
* Supports maximum 1080P output resolution;
* Supports AWG26 standard HDMI cable: input up to 15 meters, (1080P and less resolution);
* Supports most acquisition programs such as VLC, OBS, Amcap, etc.
* Compatible with Windows, Android and MacOS;
* Complies with USB Video and UVC standards;
* Complies with UAC USB Audio standard;
* Compact and portable.

Connection and Operation:

1:Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.

2. Connect the display device to the HDMI output of the video capture with one HDMI cable.

3. Connect PC USB port to the USB output of the video capture with one USB cable.

4: Configure Your streaming/recording Software Operation steps for USB video capture(OBS): Open the software Choose sources of
“Video capture Device” Set the size of image Choose “Studio Mode”(double window)
Choose “Start Recording”.

Specifications:

HDMI Resolution: The maximum input can be 4K;
Supports video format: 8/10/12 bit deep color;
Video output format: YUV 、 JPEG;
Video output resolution: the maximum output can be 1080P;
Supports audio format: L-PCM;
Input cable distance: ≤ 15m, AWG26 standard HDMI cable;
Maximum operating current: 0.7A / 5VDC;
Operating temperature range: (-10 to + 55 ℃);

Package Included:

1 * capture card
1 * Double male USB2.0 cable
1 * Micro USB cable
1 * User Manual

Computer hardware minimum requirements:

CPU: Desktop i5-3400 or above ; Laptop i7-3537U 2.0GHZ or above
Graphics Card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Run memory: 4G RAM or above

Example as below:

1. Add new sources, choose “ Video Capture Device ”

2. Set the size of the image.

3. Choose “Studio Mode”(double window).

4. Click “ Start Recording”
