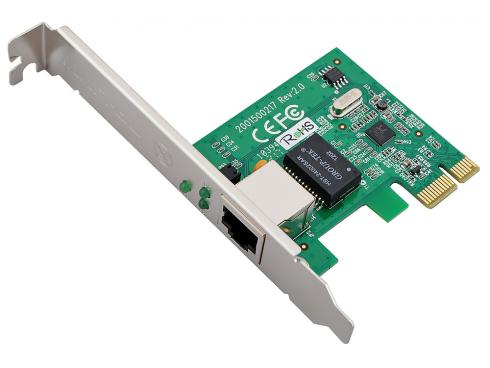

TP-Link Gigabit PCI Express Network Adapter 10/100/1000 [ TG-3468 ]

TP Link Gigabit TG-3468

TP Link Gigabit Express 10 / 100 / 1000 TG-3468

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface
32 bit PCI Express
1 10 / 100 / 1000Mbps RJ45 port

Network Media
10BASE T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA 568 100Ω STP (maximum 100m)
100BASE TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA 568 100Ω STP (maximum 100m)
1000Base T: UTP category 5, 5e cable (maximum 100m)

Data Rates
10 / 100 /1000 Mbps for Half-Duplex mode
20 / 200 /2000 Mbps for Full-Duplex mode

LED Indicator
1000 Mbps Link / Act, 100 Mbps Link/ Act, 10Mbps Link / Act

Flow Control
IEEE 802.3x Flow Control ( Full Duplex )

OTHERS

Certification
CE, FCC, RoHS

Package Contents
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide

System Requirements
Windows 7( 32 / 64bits ),Windows Vista ( 32 / 64 bits ), Window XP( 32 / 64bits )

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Low-Profile Bracket

In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance.
‡Use of Wake on LAN requires your mainboard to also support the corresponding feature
§Use of Flow Control requires devices to also support the corresponding feature
△To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center

Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
