TP-Link AC1200 Wireless Dual Band PCI Express Adapter [Archer T4E]

tplink ac1200 archer t4e

tplink AC1200 Wireless Dual Band PCI Express Adapter Archer T4E

Overview

# Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop

# High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)

# 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage

# Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists

# Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs

# 2×2 MIMO – Users can easily access to high-speed wireless connection

# Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

802.11ac – Dual Band Wi-Fi for Faster Connections

TP-LINK’s Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming

Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability

A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal

Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD

Advanced Security

WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders

Operating System

Supports Windows 10/8.1/8/7/XP(32/64 bit)

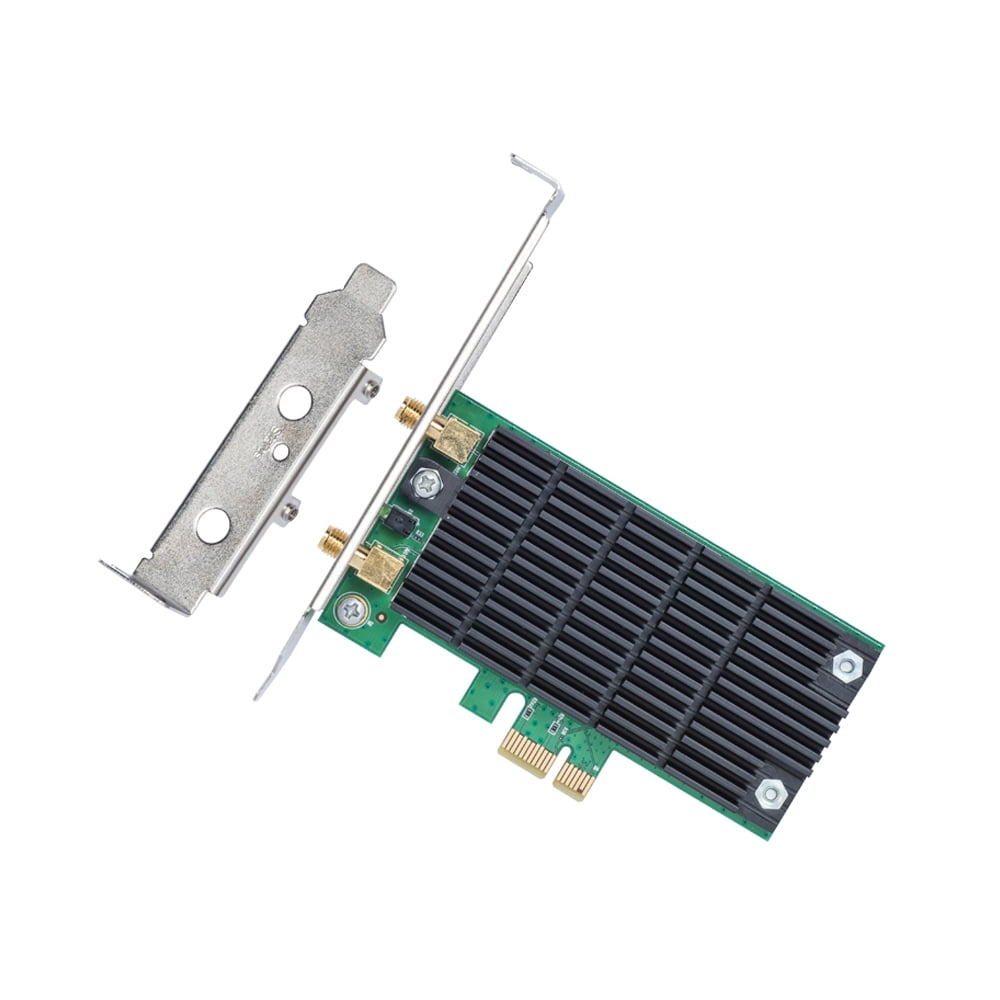

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

Specifications

HARDWARE FEATURES

Interface

PCI Express

Dimensions ( W x D x H )

4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)

Antenna Type

2 Dual Band Detachable Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/g/b 2.4 GHz

Signal Rate

5 GHz

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz :

11ac HT80: -59.5 dBm

11ac HT40: -63 dBm

11ac HT20: -68 dBm

11n HT40: -70 dBm

11n HT20: -73 dBm

11a 54Mbps: -76 dBm

11a 6Mbps: -92 dBm

2.4GHz :

11n HT40: -67.5 dBm

11n HT20: -70 dBm

11g 54Mbps: -72 dBm

11b 11Mbps: -86.5 dBm

Transmit Power

5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

​​​​​​

Certification

FCC, RoHS

Package Contents

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E

Low-Profile Bracket

Quick Installation Guide

Resource CD

System Requirements

Windows 10/8.1/8/7/XP (32/64bit)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
