tplink desktop 5Port tlsg1005d

tplink desktop 5-Port Gigabit Desktop Switch tlsg1005d





tplink desktop 5Port tlsg1005dtplink desktop 5Port tlsg1005d

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup.



Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies .



Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.



Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables.



HARDWARE FEATURES

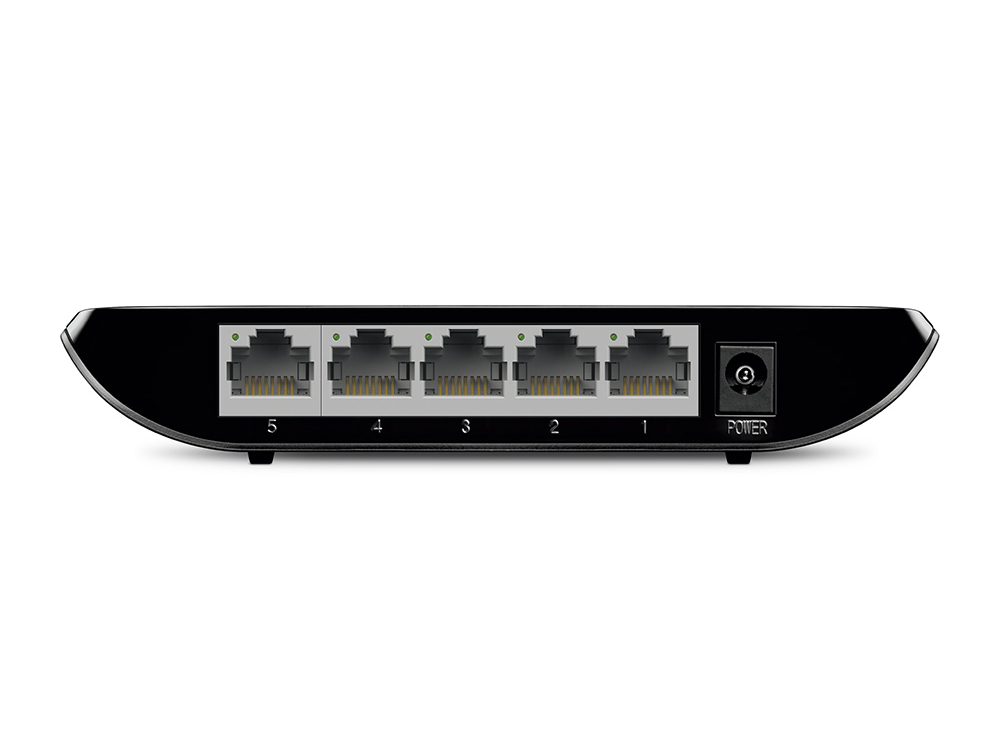

Interface 5 10/100/1000Mbps RJ45 Ports
Auto Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter
(Output: 9VDC / 0.6A)
Dimensions ( W x D x H ) 5.5 × 3.5 × 0.9 in.
(140 × 88 × 23 mm)
Max Power Consumption 2.4W
Max Heat Dissipation 8.2 BTU/h
SOFTWARE FEATURES
Transmission Method Store and Forward
Advanced Functions Green Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS
OTHERS
Certification FCC, RoHs
Package Contents 5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
